LuxSonitus – Acoustic

LUX SONITUS - ACOUSTIC

Lux Sonitus Acoustic Roller Banner Machines provide significant acoustical absorption in a small package. Each machine can be provided in single- or double-wide panel configurations, and each panel includes a double layer of absorptive fabric separated by approximately 6 inches. Machines can be grouped together in Flyhouse’s various rigging controllers to allow fast and easy conversion of a venue’s acoustical profile.

Specs Gallery

FEATURES

  • Available in single- or double-wide panel configurations.
  • Provided with wool serge, standard (other fabrics available).
  • Acoustical performance reports available.
  • Banners have integrated hem bar in lower hem.
  • Fabric panels available in custom lengths.

CONTROL



MECHANICAL

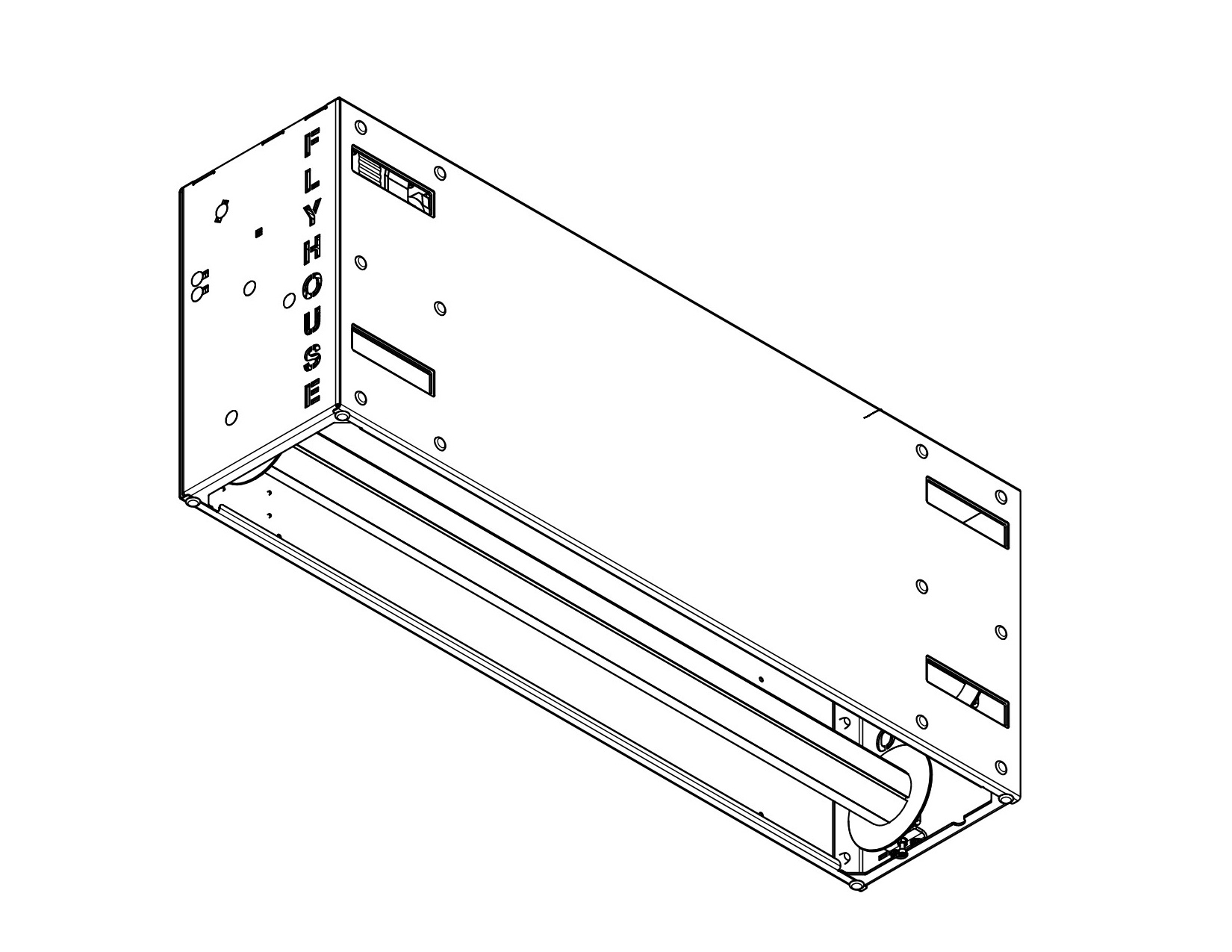

  • Rectangular case can be mounted horizontally or vertically
  • Case Material: anodized aluminum extrusion.

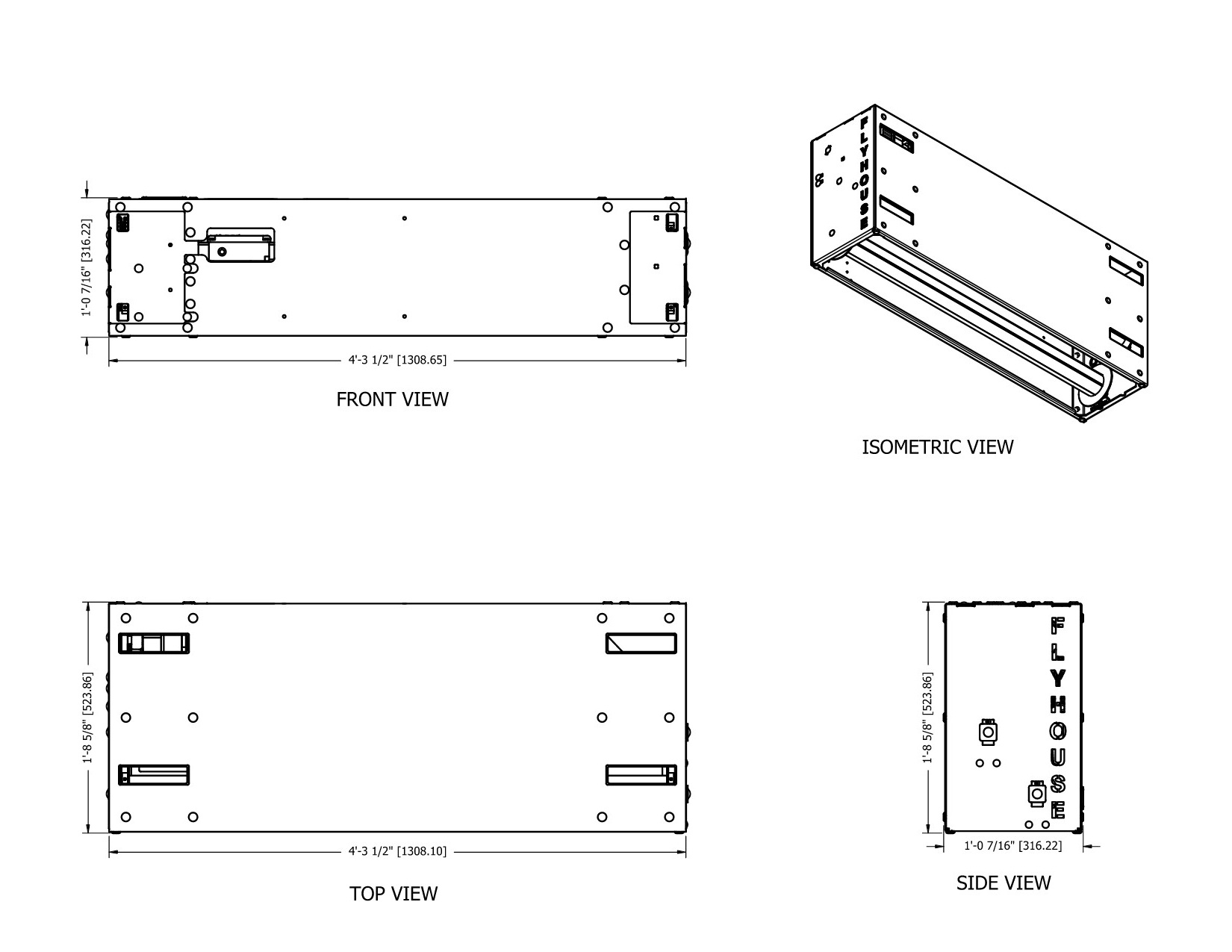

  • Dimensions: Single-panel unit is 10 in x 14 in x 70 in (254 mm x 356 mm x 1778 mm) • Self-weight: 150 lbs (68 kg) without fabric; loaded weight TBD dependent on fabric choice.

ELECTRICAL

  • Motor Phase: 3 Phase + PE or 1 Phase High Voltage.
  • Rated Voltage: 3 Phase 208V-480V, 1 Phase 220V-240V.
  • Rated Amperage: 20 Amp at 3 Phase 208V, various amperages at 1 Phase 220V.
  • Absolute encoder, standard.
